Pete's 1952 CJ3a- "Barnacle Will"

I finished up the bikini top for the 3 over the last few days.

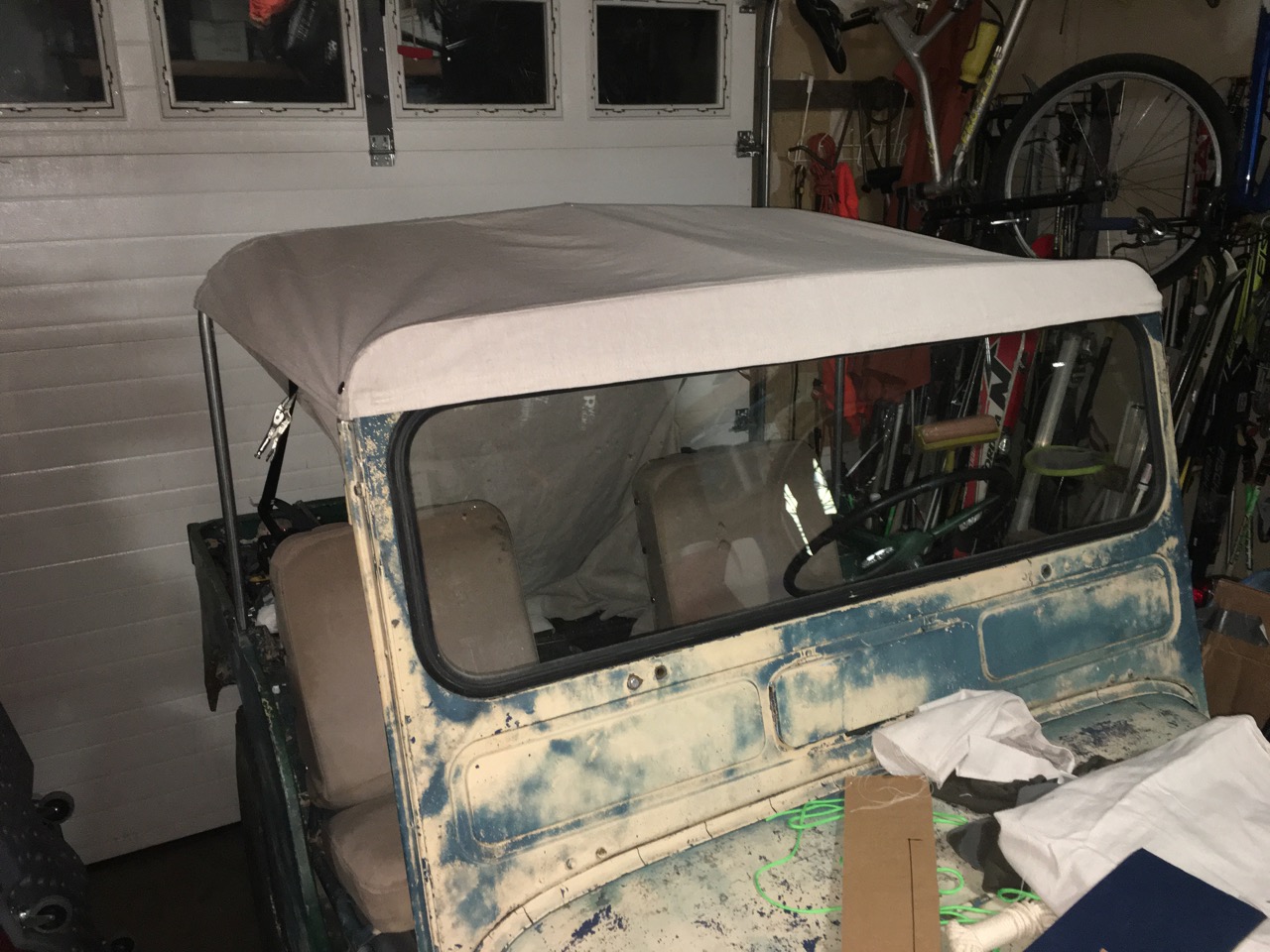

Once I had the piece sewn for the channel in the windshield, I test fitted the top fabric to the widdshield and marked where they two would sew together


Here's the bead piece pinned to the top piece, ready to sew

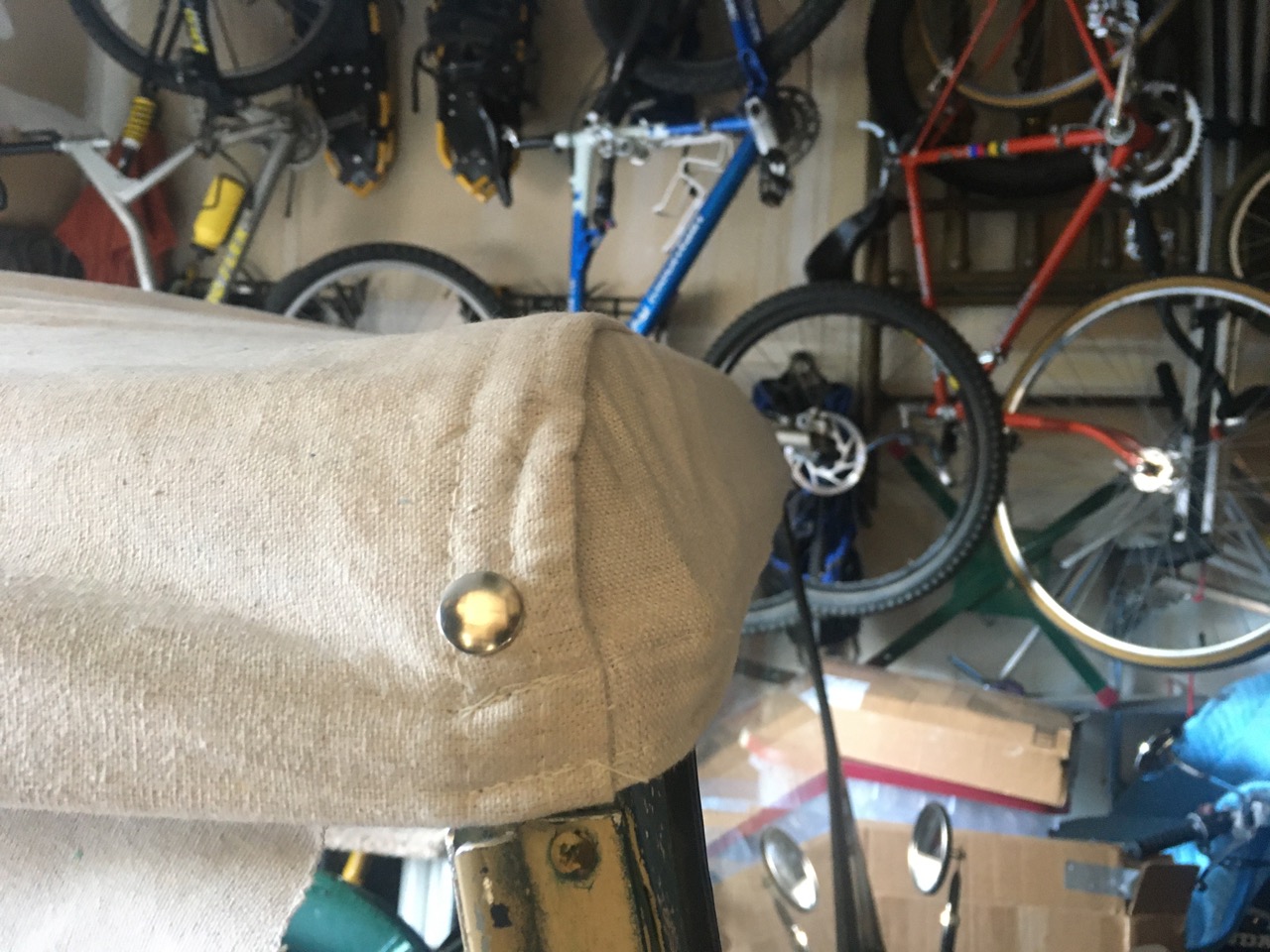

I added a couple of snaps on the corners. The snaps were already there on the windshield frame.


I bought a couple of cinch straps with metal buckles to use for the rear tie down straps. I put them around the hoop and footman loops to figure out where they would be when the fabric is pulled tight to the tub.

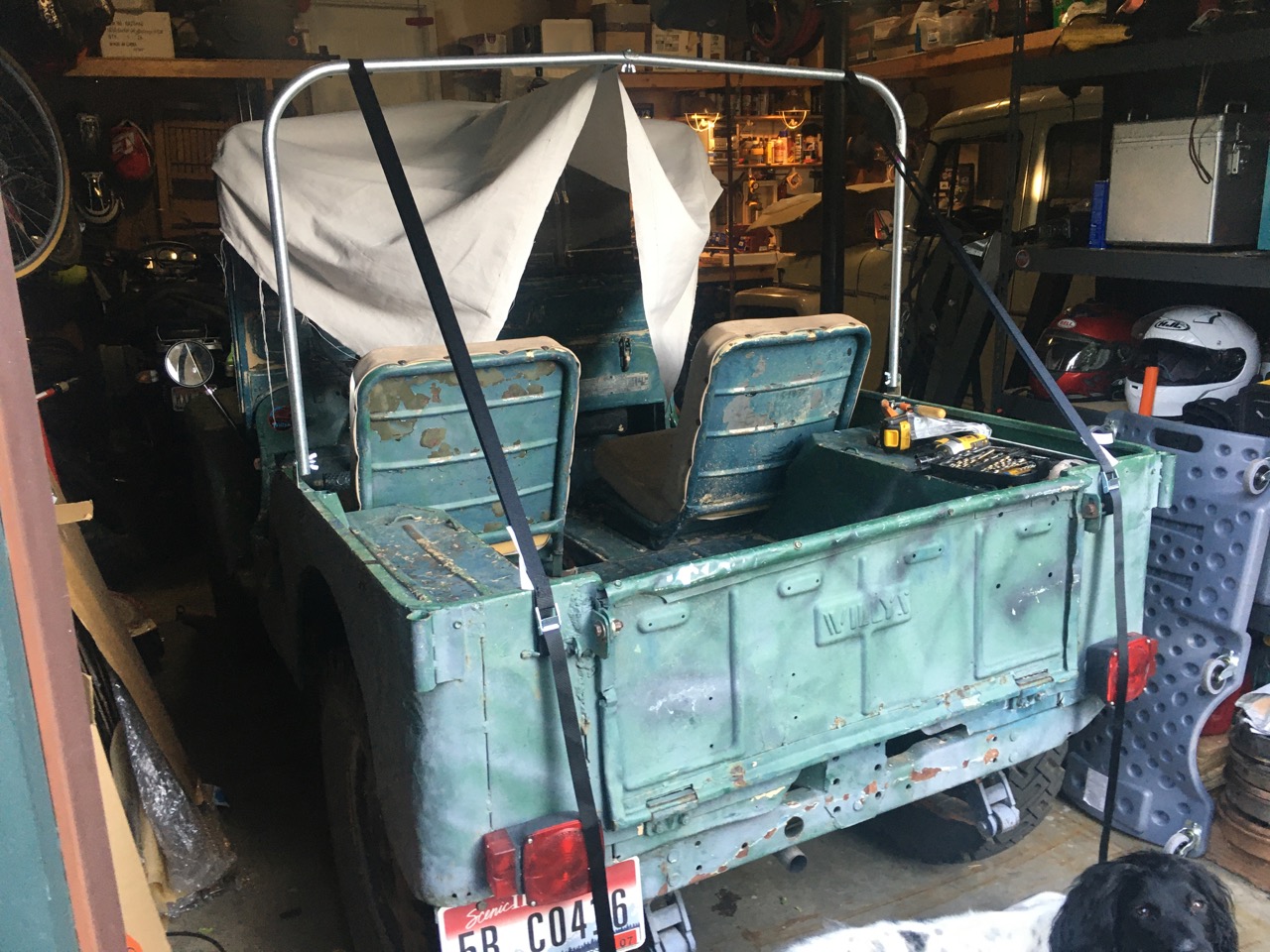

For the rear piece of fabric, I sewed a seam along the hoop, to get the right angle in the fabric around the corners of the hoop. Here's the front section finished, and held in place to the straps with vice grips to check the fit.


I used a pencil to draw the shape of the cutout on the rear piece of canvas, between the straps.

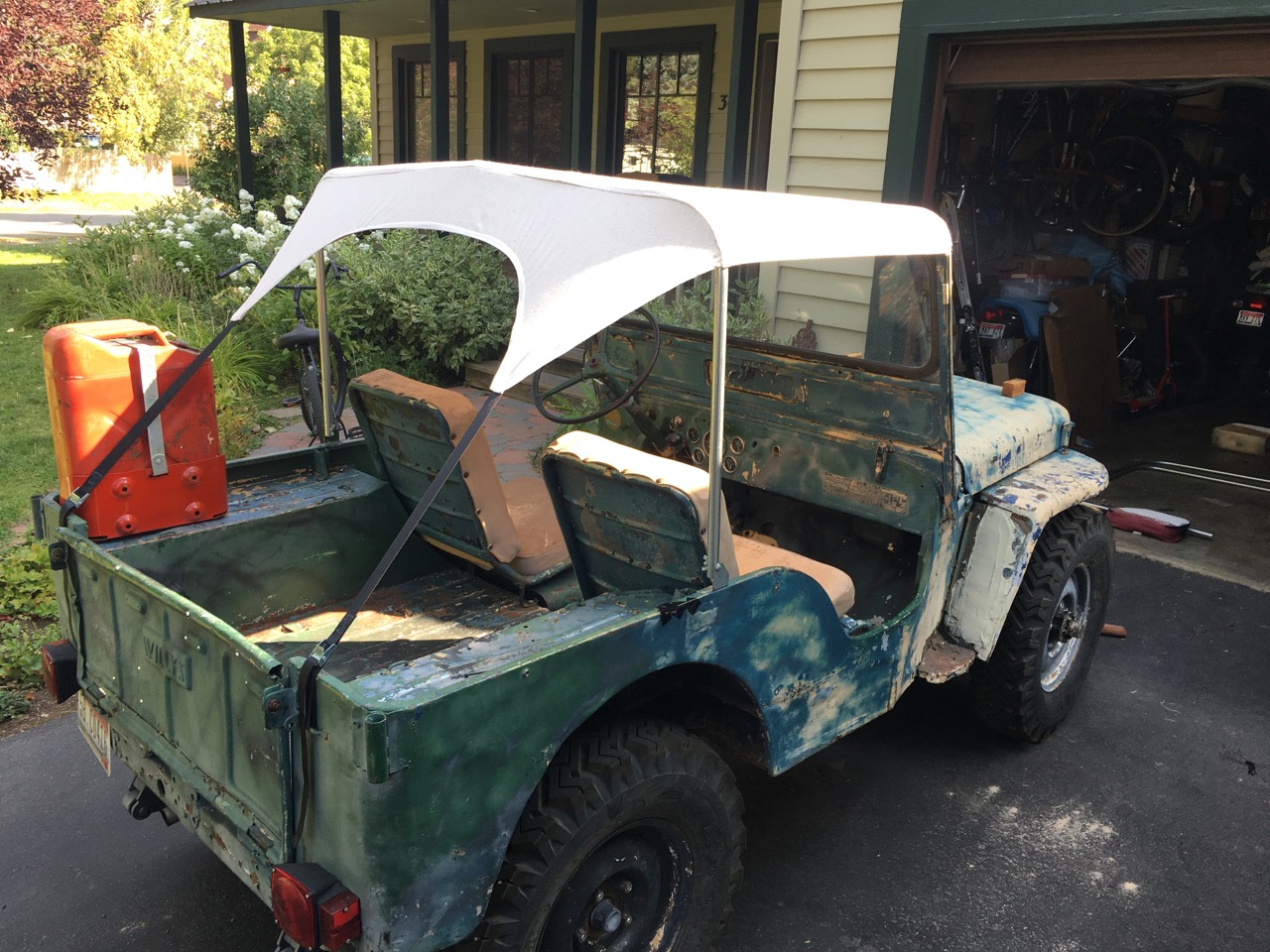

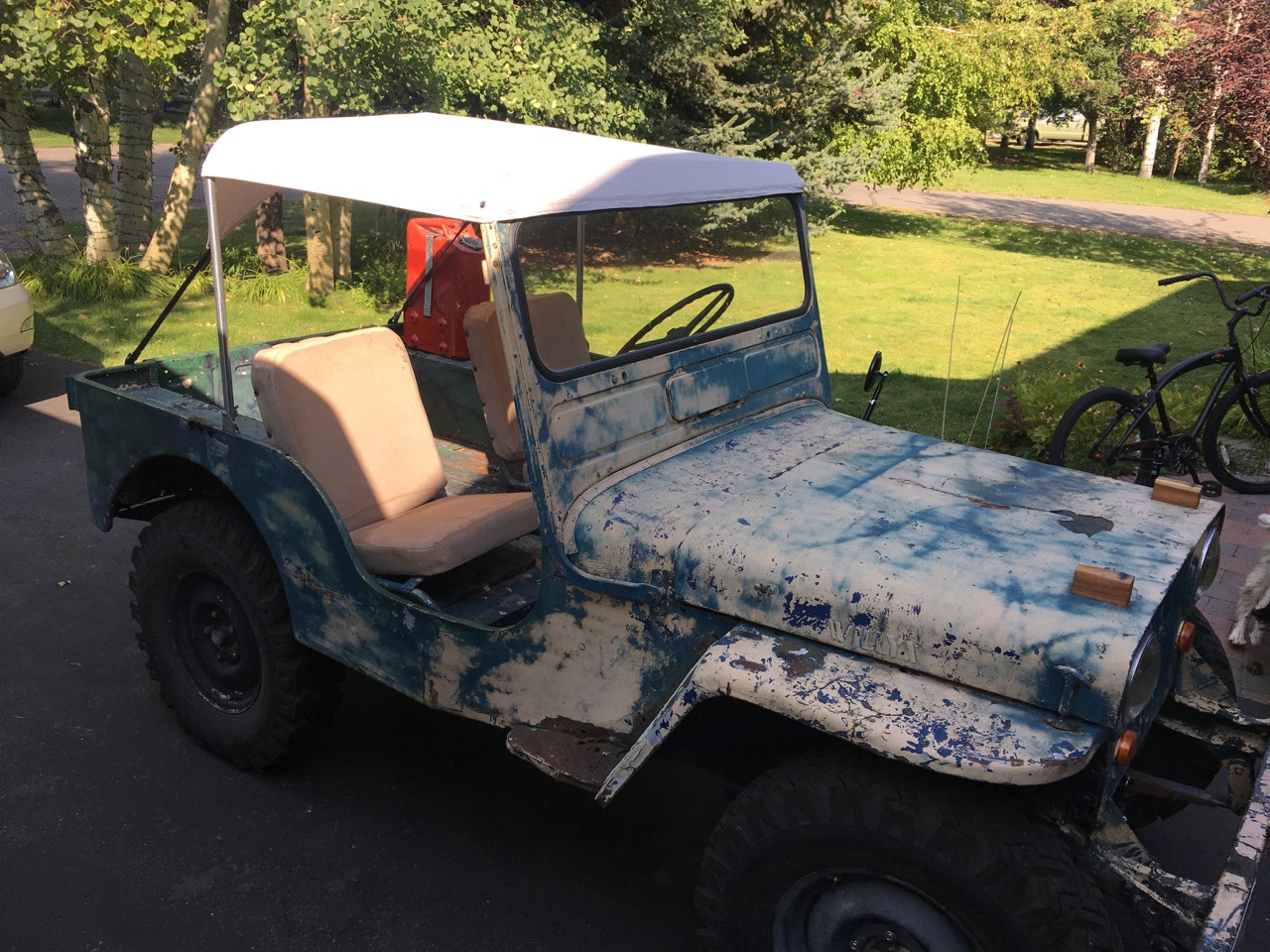

And here's the finished product, with the straps sewn on to the canvas.

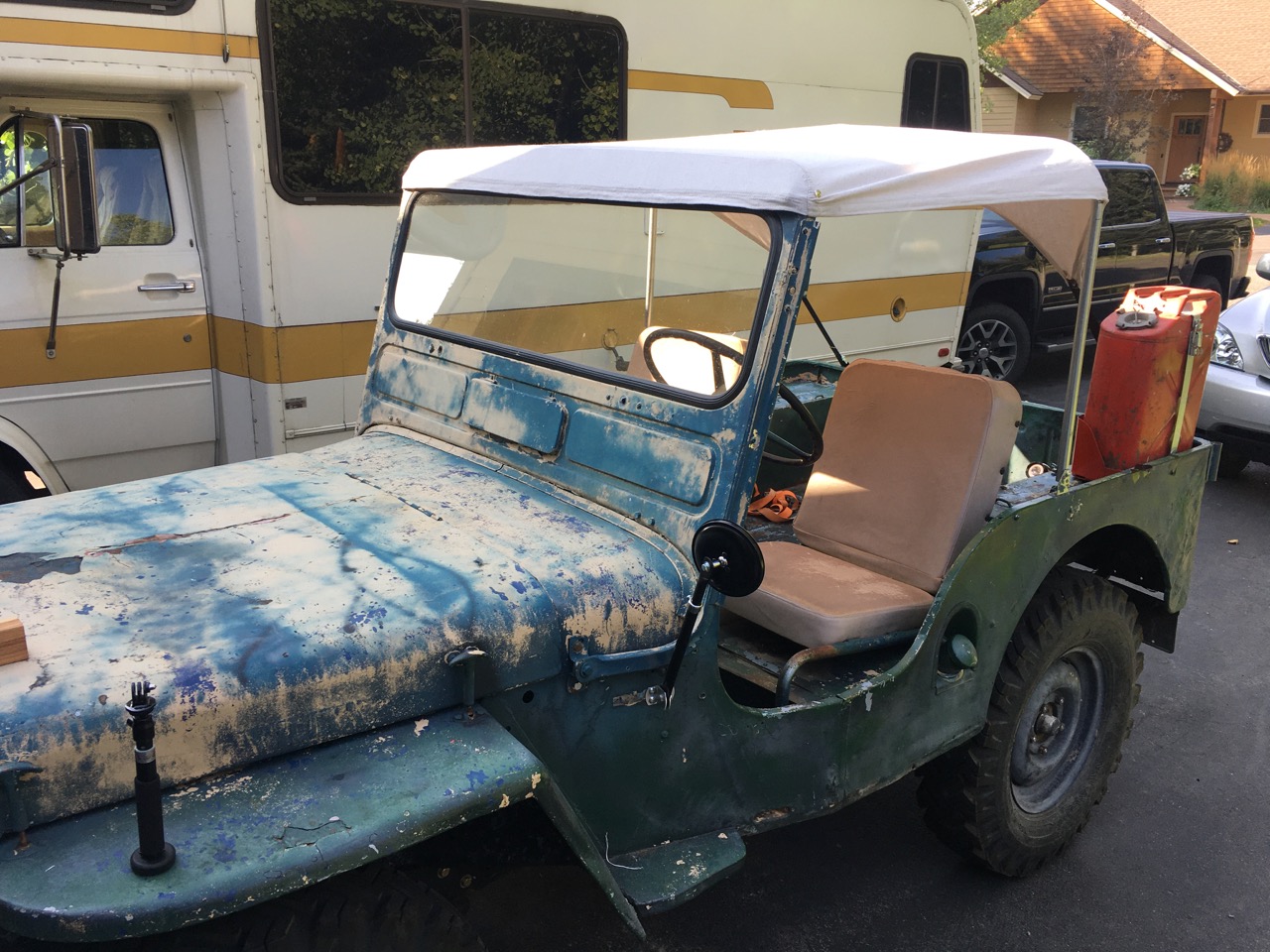

Happy with the way it turned out.


There's a few wrinkles in the canvas that won't pull out, but that's ok, for a quick and dirty summer top.

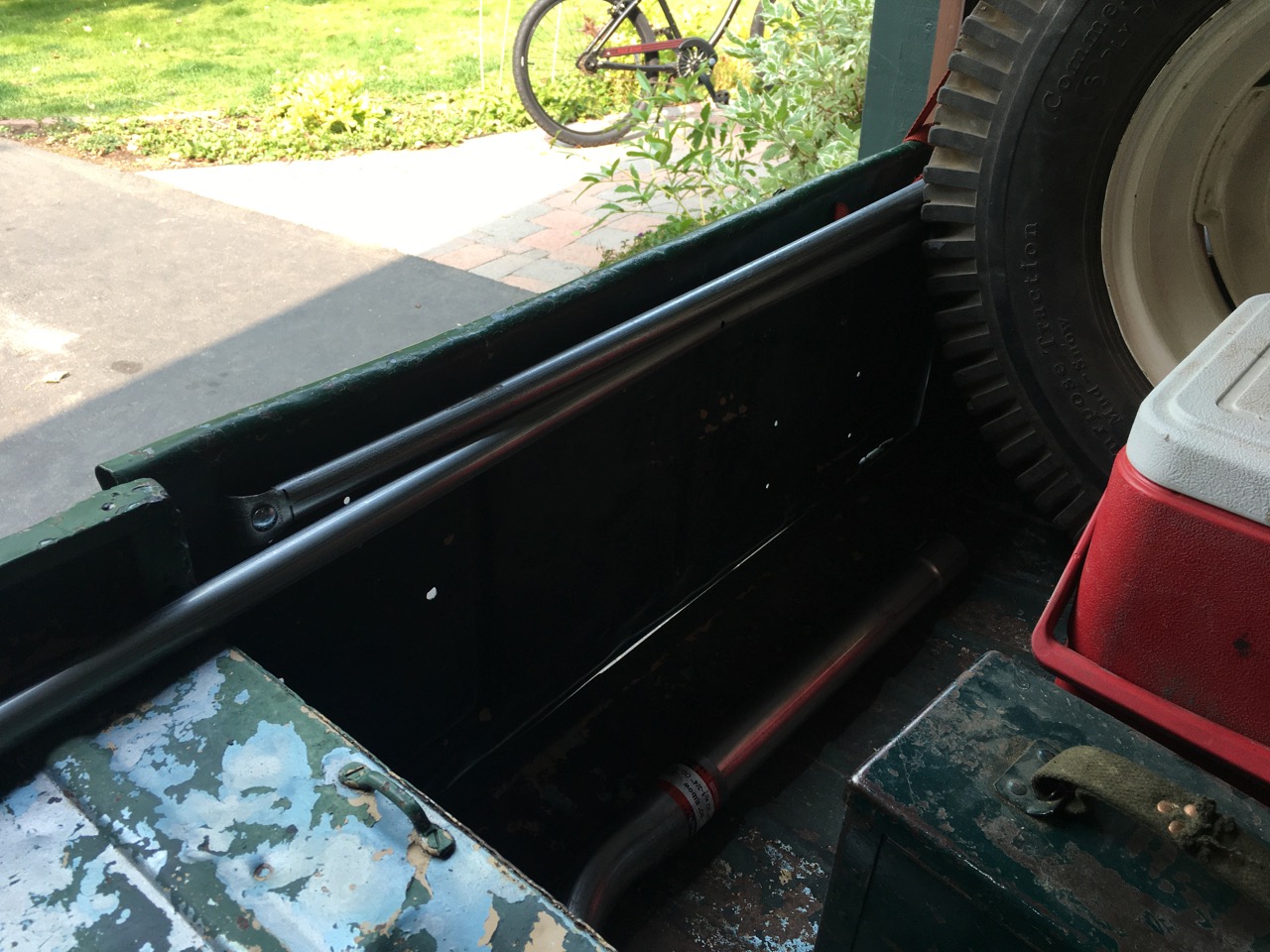

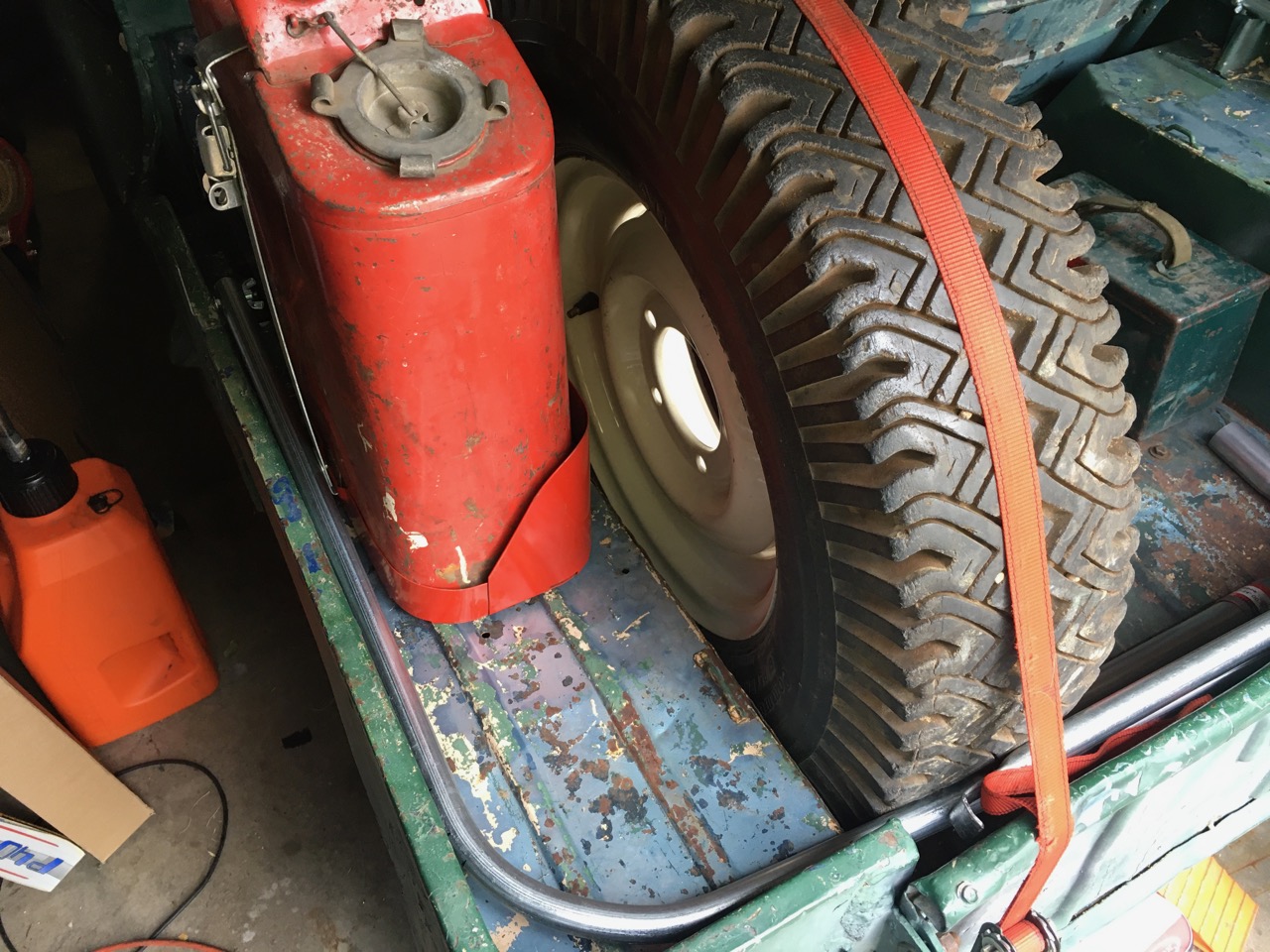

I also mounted a Jerry can I found on the local facebook market place, and spare tire from my wagon, behind the driver's seat. I decided I didn't want them hanging on the tail gate, since we will be wheeling this in Moab and don't want to come off of a step and mash something.

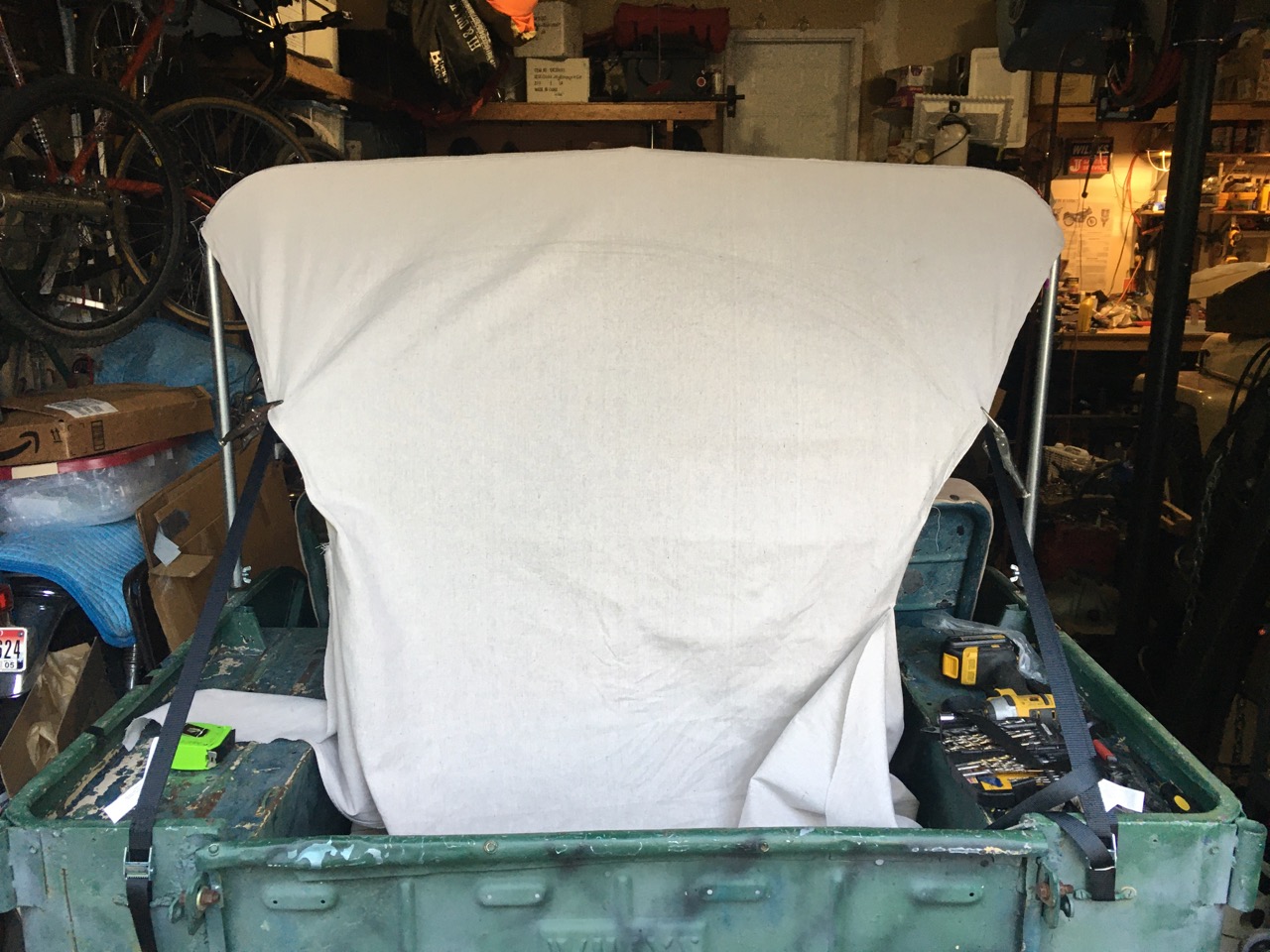

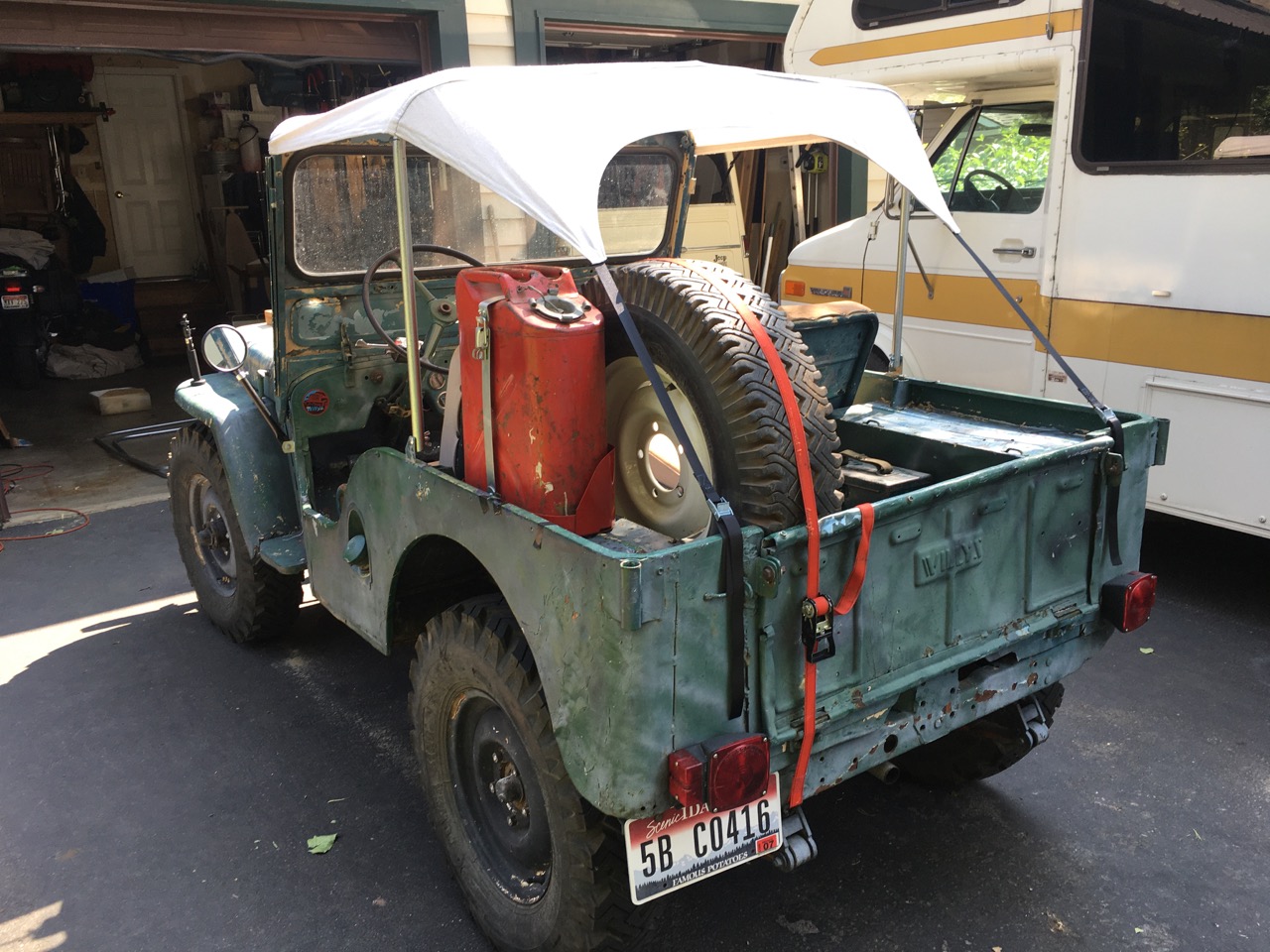

Another rear view of the top.

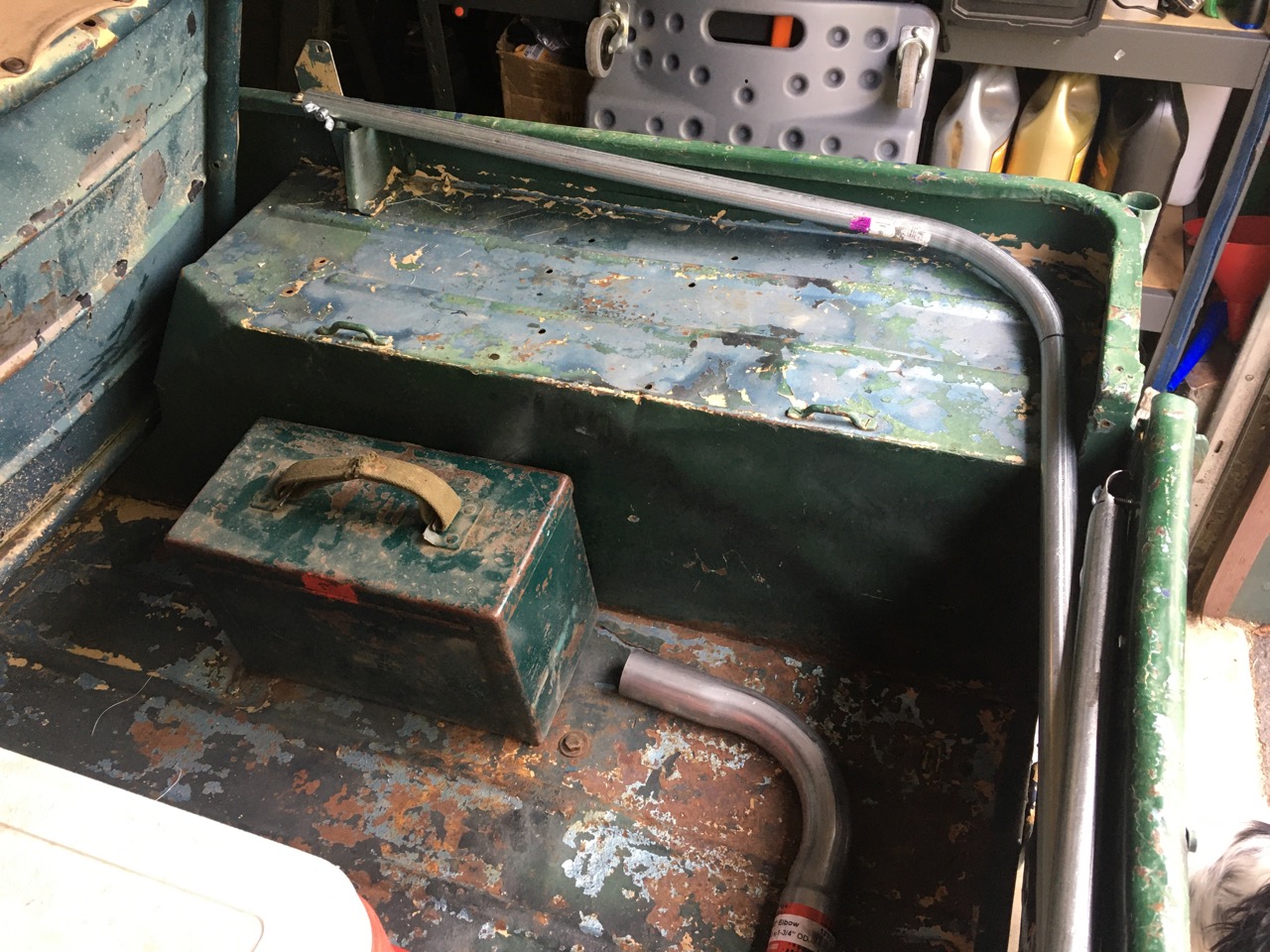

In hindsite, I would have made the hoop taller, so that when down it would wrap the back of the tub better, and I may make another taller one for this reason at some point. In order to stand the spare tire behind the seat, the hoop needs to tuck as far back as possible for the tire to fit. For now, I have to remove the bolts that hold the hoop onto the brackets, and tuck it down in side the tub. The spreader bar conveniently mounts to the tail gate through an existing hole for the bolt and wing nut.






Pete

The engine us running at 190 degrees, according to the temp gauge. Not sure how accurate the gauge is, but I assumed that the thermostate was a 190. I decided to change it to a 160, and promptly snapped two of the bolts that hold the thermostat housing to the head...

I soaked the broken bolts in a 50/50 mix of acetone and ATF overnight, which worked well enough to get the housing off of the broken bolts.


I then heated the bolts with a propane torch till hot, and then melted a candle on them, letting the wax suck down into the threads.




The wax seemed to help, and I was able to wiggle them back and forth to get them loose, and then twist them out with vice grips.


I reinstalled the new thermostat with a new gasket, and let it sit overnight before starting. I had hosed off the engine, and there were still puddles of water in the spark plug recesses, and when I started it up, I noticed that all four of the plugs were leaking compression... blowing bubbles in the water.


The plugs were old and crusty and had been pulled and reinstalled who knows how many times, so I replaced them with a new set to get them to seal.




Also bought a new gas gauge and sender. The old gauge is 6v, and the sender was dead and leaking fuel around the seal. Joseph pulled it apart earlier, and tried to get it to work, but it was beyond repair.

I installed the new parts, and it works. I don't like the new look of the gauge though, so thinking about making a 12v-6v voltage reducer to use the old gauge which seems to work, so that it looks right along side the other crusty gauges on the dash.

I still have a few things on my list of to-do's before Friday, when I'll be headed south to Moab for the weekend to wheel with Grandpa's Jeep, Bam Bam, Johnny Geep, and a hand full of other guys who are on their way to the Colorado Fall Color Tour. Should be fun, can't wait...

Pete

The engine us running at 190 degrees, according to the temp gauge. Not sure how accurate the gauge is, but I assumed that the thermostate was a 190. I decided to change it to a 160, and promptly snapped two of the bolts that hold the thermostat housing to the head...

I soaked the broken bolts in a 50/50 mix of acetone and ATF overnight, which worked well enough to get the housing off of the broken bolts.


I then heated the bolts with a propane torch till hot, and then melted a candle on them, letting the wax suck down into the threads.




The wax seemed to help, and I was able to wiggle them back and forth to get them loose, and then twist them out with vice grips.


I reinstalled the new thermostat with a new gasket, and let it sit overnight before starting. I had hosed off the engine, and there were still puddles of water in the spark plug recesses, and when I started it up, I noticed that all four of the plugs were leaking compression... blowing bubbles in the water.


The plugs were old and crusty and had been pulled and reinstalled who knows how many times, so I replaced them with a new set to get them to seal.




Also bought a new gas gauge and sender. The old gauge is 6v, and the sender was dead and leaking fuel around the seal. Joseph pulled it apart earlier, and tried to get it to work, but it was beyond repair.

I installed the new parts, and it works. I don't like the new look of the gauge though, so thinking about making a 12v-6v voltage reducer to use the old gauge which seems to work, so that it looks right along side the other crusty gauges on the dash.

I still have a few things on my list of to-do's before Friday, when I'll be headed south to Moab for the weekend to wheel with Grandpa's Jeep, Bam Bam, Johnny Geep, and a hand full of other guys who are on their way to the Colorado Fall Color Tour. Should be fun, can't wait...

Pete

I think you will experience people asking you where they can buy that top Pete. It looks that good!

Regarding the 'stat, good ol' hot wrench works every time for loosening stubborn fasteners.

Not much to report lately, but I've done a few little things in the last few days on the 3A.

@WV Steve donated a spare wheel to the cause (thanks Steve!). I saved one of the old tires that came with the Jeep for a spare, so I had it mounted with a new tube at the tire shop.



I wanted to have a recovery point on the rear, so I picked up a nicely patina'd pintle on ebay that fits the bill.



Also worked over the speedo. It was missing the cable when we bought the Jeep, so I bought a new one. I put the new cable on the speedo, and tried turning the other end of the cable by hand and it wouldn't turn... So, I pulled out the gauge and took it apart. The guts were just stuck from years of sitting. I cleaned it up, lubed the moving parts, and it now works great. It's even accurate on the highway despite having oversized tires.

The clutch and brake pedals were missing the return springs and bracket, and there was a bungee cord doing the job. I got new springs and fab'd a bracket to put them on. Works much better now, and with better spring pressure on the pedals they don't rattle around so much with the all the slop in the worn out pedal bushings. :)

I drove it to work yesterday for another shake down run, and all seems well. We are planning to head back to Moab over Halloween for a few days, and want to make sure everything is still working since I hadn't driven it since the last trip a few weeks ago.

More to come...

Pete

Yep, that's top speed and wound out. Overdrive would be great, and on the want list.

I prefer Idaho, but it's a completely different experience in Moab. The trails around here are mostly BLM dirt roads with incredible views and not much technical other than steep or washed out. In Moab, it's other worldly and lots of trails ranging from easy peasy to no way I'm doing that... I've been going to Moab for about 20 years off and on. First going down for the national parks, then an annual car show in my '50 Plymouth (sold in 2010), and then started with Jeeps in 2011 when I got my wagon trail worthy and started helping with the Rally every May.

Here's what it's like here in Idaho, taken ten years ago elk hunting with my Dad. The view from this spot hasn't changed at all.

Pete

Last edited:
Pete, you're welcome for the wheel. Moab is different. As a kid my parents always went to Ouray also to various desert places. In Ouray we jeeped other places we camped. Dad was born in Tomboy. Uncle at Camp Bird. Had been to Moab in passing without jeeping other than in the early 60's when I took my Scout over Elephant Hill and the following year when I took a rental CJ6 from Ouray over the Hill. Went back in 2015 with my 3A, to Elephant Hill, that is (and the Mt. Ellen, Hanksville search for the wild buffalo herd). Wasn't until going to your and Casey's Willys Rally that I did Hell's Revenge. It was an eye opener. Watched Casey come up Hell's Gate. Never thought I'd do that. Have done it twice now. Moab is really visually challenging but less damaging than in the mountain rocks. Did enjoy the return to Elephant Hill with you and others in September.

Have you thought about the Rubicon in July 2010? Could be another eye-opener for both of us.

I've been busy working on Barnacle Will here and there, but haven't had much time to update the build thread...
